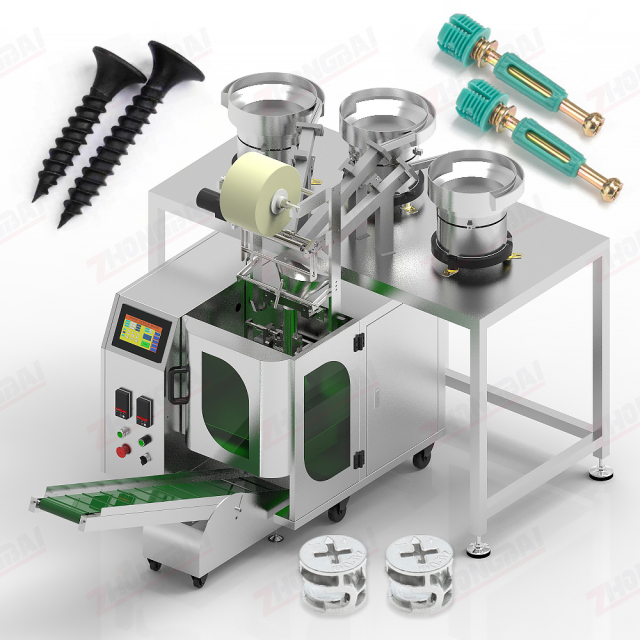

Furniture Cam Lock Fittings Packing Machine with 3 Feeders
No.ZB-FF332

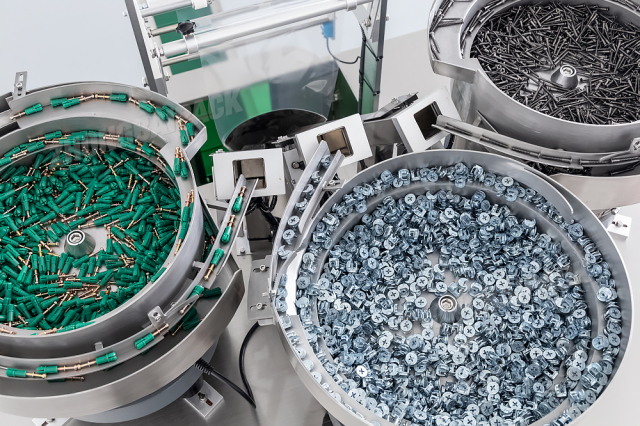

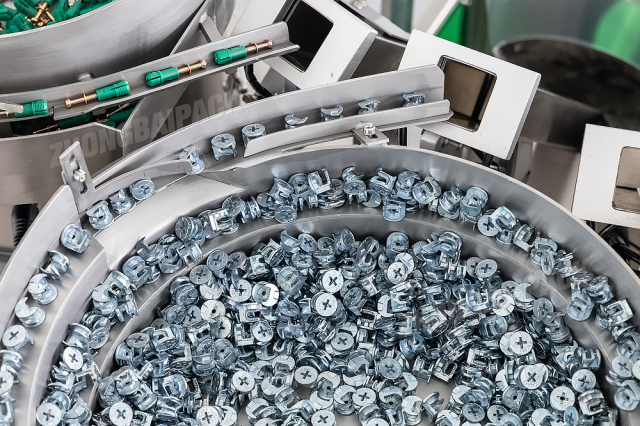

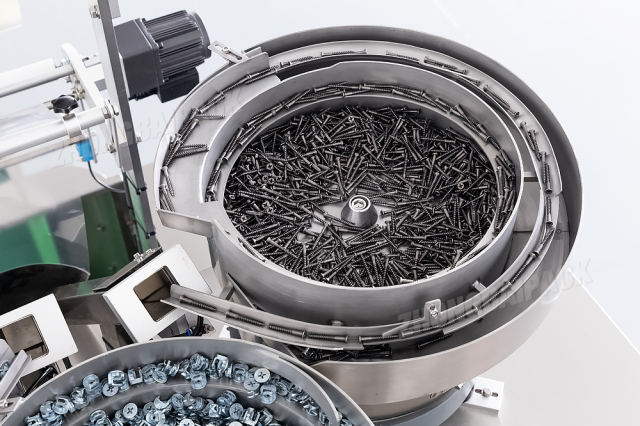

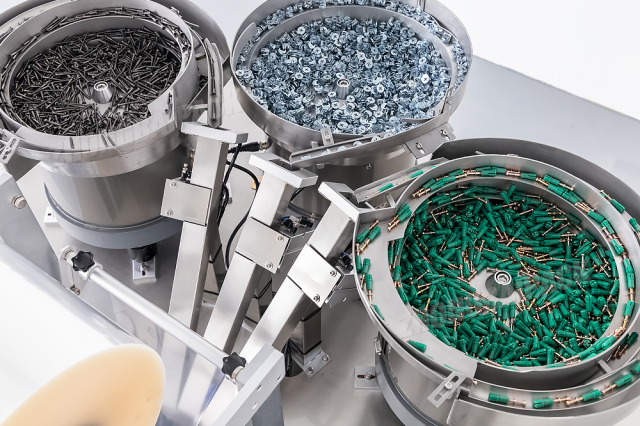

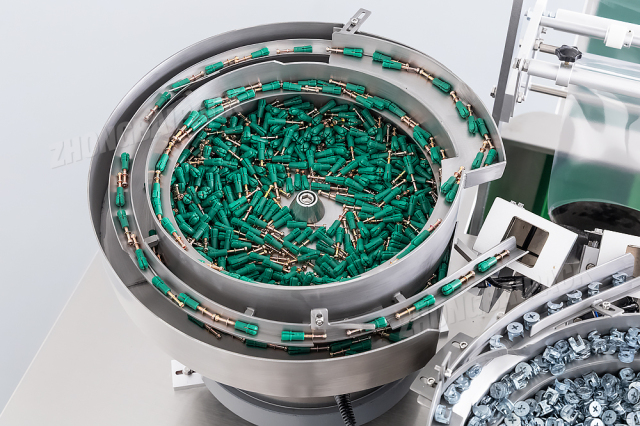

▶ ZB-60D3 furniture cam lock fittings packing machine with 3 bowl feeders. ▶ The machine features three independent bowl feeders, enabling it to package either complete sets or individual furniture parts with flexible settings via the touch screen. ▶ High accuracy sensor counting with real-time data output and PLC integration. User Manual One Year Warranty Install & Tutorial Videos Custom Packing Solution Free Lifetime Technical Support
Highlights: ▶ The machine is equipped with three bowl feeders, allowing it to handle either sets of fasteners or a single type. ▶ High accuracy sensor counting with real-time data output and PLC integration. ▶ Operators can easily set the required counting quantity directly on the user-friendly interface, real-time monitoring of counting quantity is available on the touch screen.
Features:
● Automation: automatically perform tasks such as feeding, counting, filling, bagging, sealing, output production calculating and even labeling or printing, significantly reducing the need for manual labor.
● High Precision Counting: advanced sensors and software algorithms ensure precise counting and reduce the risk of missing or extra components.
● Versatility: the machines can be adapted to package fasteners and accessories set in various sizes and shapes. They come with adjustable settings for product count and bag length , allowing customization based on the specific packaging requirements.
● User-Friendly Interface: touchscreen human-machine Interface for easy operation, parameter setting, real-time monitoring and troubleshooting.
● Self Diagnosis:the machine incorporates fault detection and diagnosis systems that can automatically identify and alert operators to potential issues, reducing downtime and maintenance costs.
● Durable Structure: constructed with stainless steel and designed for easy cleaning and maintenance.
● Customizable Solutions: our machines accommodate a wide variety of screws and fasteners, offering versatile solutions to meet diverse packaging needs. Customization options allow the equipment to be tailored to specific production requirements, enhancing flexibility and operational efficiency.
Main Structure:

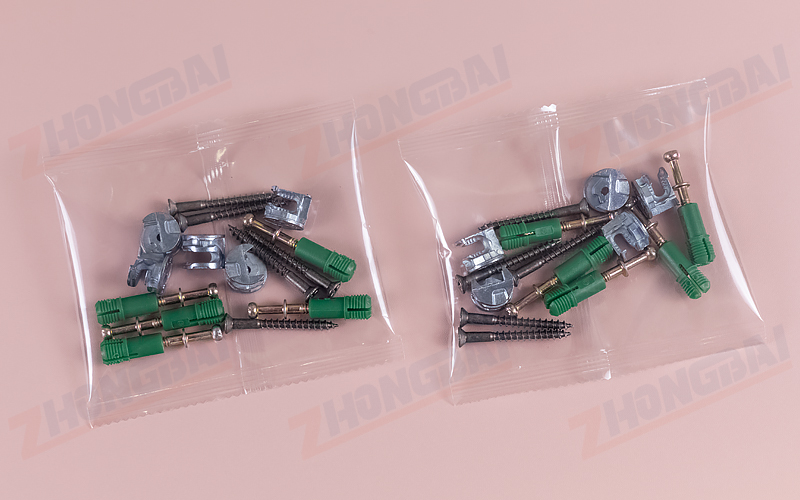

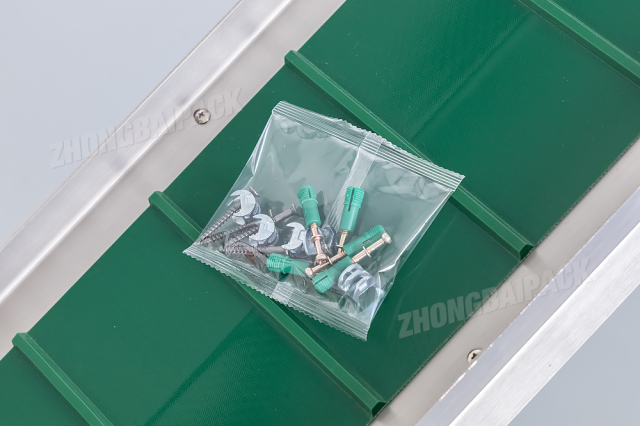

Technical Specificatioin: Model: ZB-60D3 Capacity: 10-50bags/min Counting quantity: set on touch screen Bag width: max. 150mm | 200mm | 250mm | customize Bag length: max. 200mm | 300mm | 400mm | customize Total power: 2.4KW Voltage: 220V, 50/60HZ Machine dimension: (L)2150×(W)1400×(H)1500mm Packing material: Plastic film | Paper film | Premade pouch Packaging Samples:
