Screw Washer Nut Packing Machine with Refill Hoppers
No.ZB-S271
▶ ZB-60D4 automatic counting packing machine for screw, hexagon nut, flat washer, spring washer, socket cap screw etc. ▶ Flexible design for vibratory bowl feeders ideal for typical types of fasteners. ▶ This integrated system is equipped with refill hoppers for non-stop operation operation and an integrated Check Weigher for guaranteed weight accuracy in every bag.
User Manual One Year Warranty Install & Tutorial Videos Custom Packing Solution Free Lifetime Technical Support

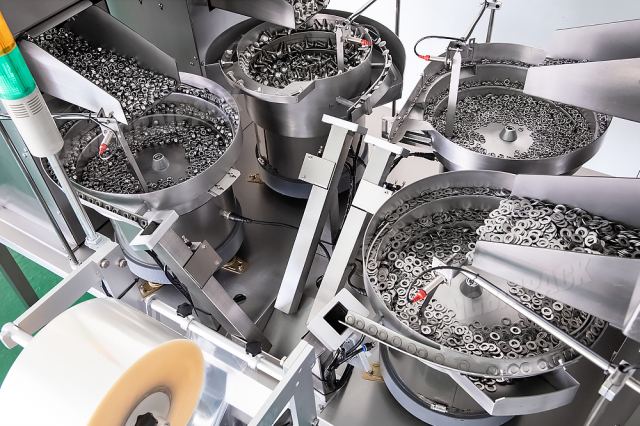

Highlights: ▶ The synergy between the four refilling hoppers and vibratory feeders, bagging system, and the quality-assuring check weigher delivers a system that excels in speed, accuracy, and operational intelligence, making it the ideal solution for demanding industrial packaging environments. ▶ Flexible design for vibratory bowl feeders enables quick changeover between different fastener sizes, allowing it to handle bolts, screws, washers, and nuts in a wide range of specifications.
Application: ● Fasteners: screw, bolt, nut, washer, rivets, nails etc. ● Plastic/Rubber Parts: wall anchor, rubber o-rings, toys, lego building bricks, small plastic parts. ● Hardware Parts: hardware components, hardware connectors, metal parts etc. ● Furniture Accessories: furniture connectors, furniture fasteners, furniture fittings, furniture accessories, door handle, hinge etc. ● Others: small hardware or plastic parts, regular shape or irregular shape of parts.
Features:
● Automation: automatically perform tasks such as feeding, counting, filling, bagging, sealing, output production calculating and even labeling or printing, significantly reducing the need for manual labor.
● High Accuracy Counting:advanced sensors and software algorithms ensure precise counting for the components, minimizing errors and waste.
● User-Friendliness: 7 inch touchscreen with English user-friendly interface that make it easy for operators to set up and monitor the packaging process.
● Self Diagnosis:the machine incorporates fault detection and diagnosis systems that can automatically identify and alert operators to potential issues, reducing downtime and maintenance costs.
● Durable Structure: constructed with stainless steel and designed for easy cleaning and maintenance.
● Customizable Solutions: our machines accommodate a wide variety of components, offering versatile solutions to meet diverse packaging needs. Customization options allow the equipment to be tailored to specific production requirements, enhancing flexibility and operational efficiency.

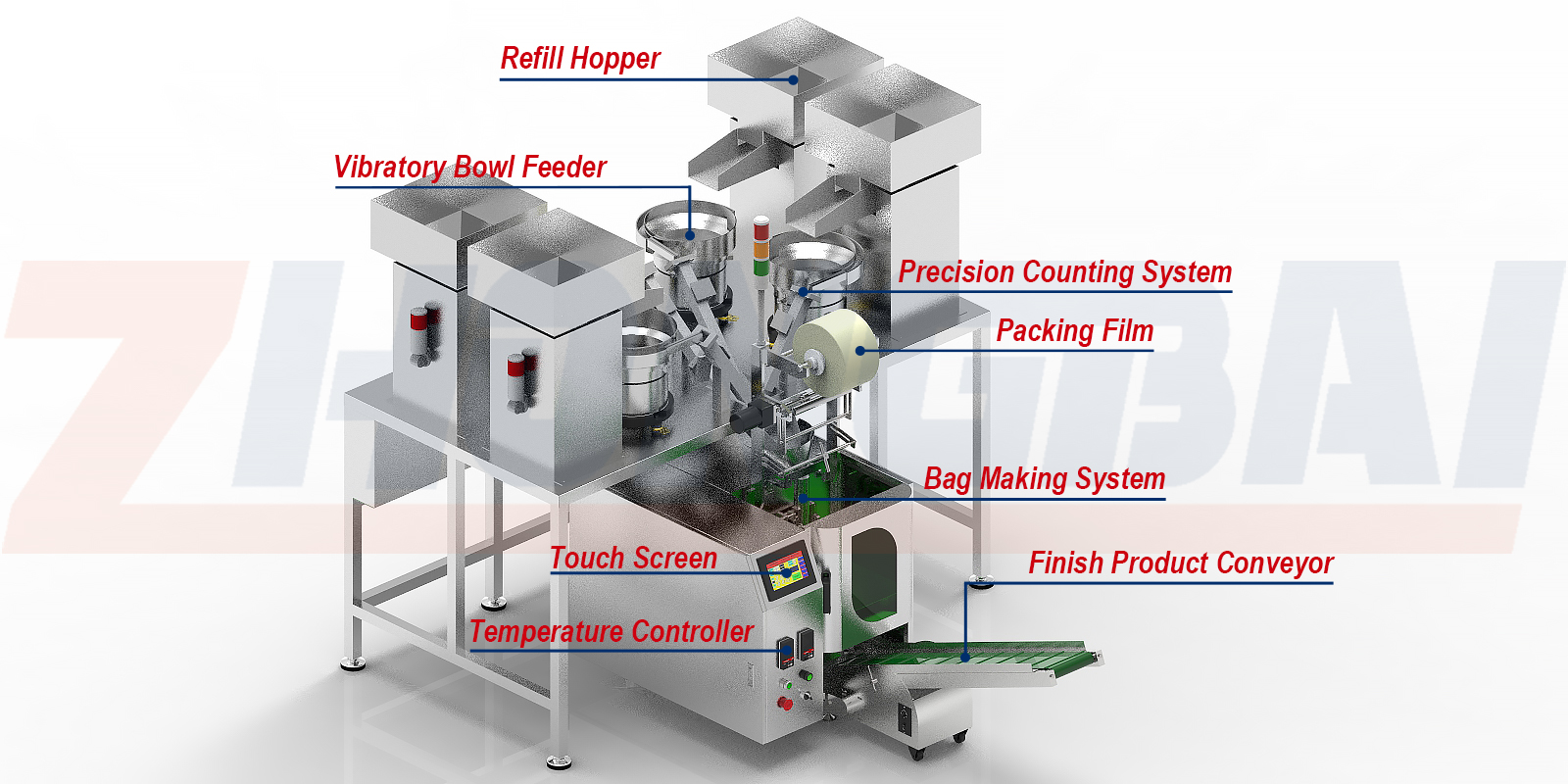

Main Structure:

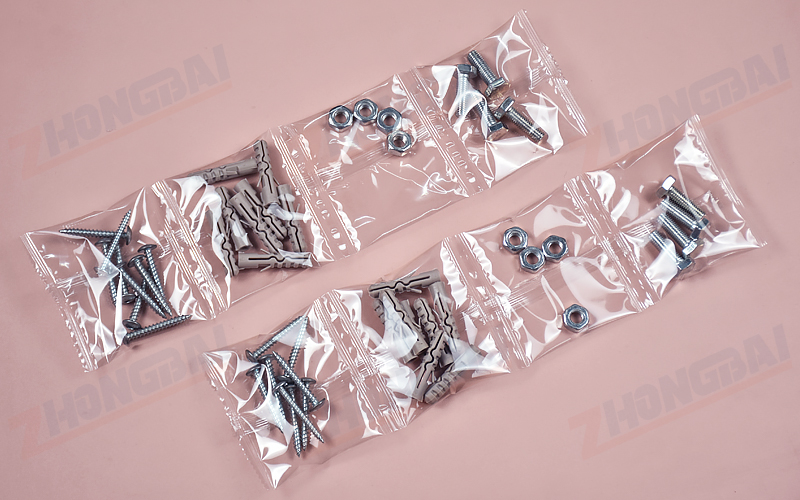

Technical Specificatioin: Model: ZB-60D4 Capacity: 10-50bags/min Counting quantity: set on touch screen Bag width: max. 150mm | 200mm | 250mm | customize Bag length: max. 200mm | 300mm | 400mm | customize Total power: 2.7KW Voltage: 220V, 50/60HZ Machine dimension: (L)2350×1600×(H)1500mm Packing material: Plastic film | Paper film | Premade pouch Packaging Samples:
